General Specifications

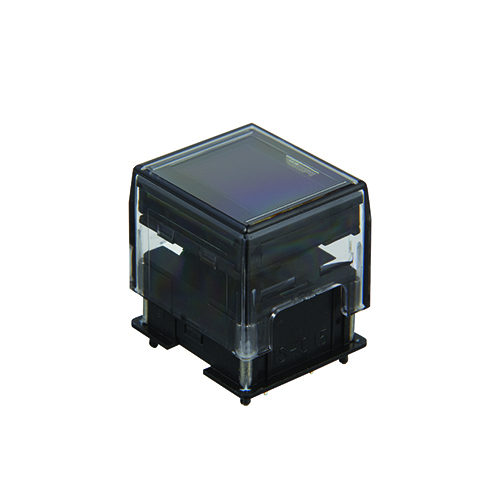

Part No. |
ISC15ANP4 |
Description |
OLED Pushbutton |
Name |
SmartSwitch |
Series |
SmartSwitch |
Poles |
SPST |
Circuits |
Off-On |
Rating |
0.1 |
Illumination |
Illuminated |
Mounting Type |
Through Hole |
Contact Finish |
Gold Plating |
Contact Rating |
100mA 12V DC |
Actuator Type |
23.13mm L x 20.59mm W |
Panel Cutout Shape |
13.41mm L x 9.57mm W |
Termination Style |
Straight PC Terminals |
SM Type |
Pushbutton, OLED |
Display Mode |
65536 Colors, Passive Matrix |
